Low-Latency Java Programming: Best Practices Unleashed

Achieving ultra-low latency in Java (think microseconds or sub-millisecond tail latencies) is challenging but very feasible with the right techniques. This is critical for high-frequency trading, real

Apr 18, 2025

1. Avoid Garbage Collection (GC) as much as possible

Use object pools / preallocation: Avoid allocating objects on the fly. Reuse them where possible.
Use off-heap memory: Tools like Chronicle Queue, Agrona, or DirectByteBuffer help store data off-heap.
Choose the right GC:
- ZGC and Shenandoah: Low pause GC (not ultra-low, but good for soft real-time).
- For ultra-low: Use Epsilon GC for benchmark/test (no GC), or manually manage memory.
- Consider NoGC design: allocate everything at startup, and never let GC kick in.

2. Tune the JVM

Use these flags (tune per app):

-XX:+UseNUMA // https://answers.ycrash.io/question/-what-is-jvm-startup-parameter--xxusenuma?q=851
-XX:+UseLargePages
-XX:+AlwaysPreTouch
-XX:MaxInlineSize=1024
-XX:+UseCompressedOops (disable if using more than 32 GB heap)
//There are a lot of JVM JIT compiler optimization techniques, the most important of which is inlining. Method inlining saves the creation of method stack frames, and method inlining also enables more and deeper optimizations by the JIT compiler.

Pin threads to cores using taskset or numactl (on Linux).
Avoid context switches — ensure thread affinity with libraries like Jaffre or Affinity.

3. Use Efficient Data Structures

Prefer primitive collections from libraries like Agrona, fastutil, or HPPC.
Avoid autoboxing/unboxing.
Prefer flat data structures (no nested objects).

4. Threading & Locking

Avoid locks:
- Use lock-free algorithms: java.util.concurrent’s Atomic* classes or sun.misc.Unsafe.
- Use Disruptor pattern (from LMAX Disruptor library) — extremely low-latency pub-sub model.
Use busy spinning (Thread.onSpinWait() in Java 9+) instead of blocking in ultra-low paths.

5. Time & Latency Measurement

Use nanosecond timers: System.nanoTime() (not currentTimeMillis()).
Warm up the JVM before measuring (due to JIT compilation).
Profile using JMH, perf, Flame Graphs, and Java Flight Recorder.

6. Networking Optimizations

Use kernel bypass tech for I/O: DPDK, Solarflare, or RDMA.
Avoid NIO unless fine-tuned; consider netty, Chronicle Wire, or Aeron for faster messaging.
Use binary protocols (not JSON/XML), e.g., SBE (Simple Binary Encoding).

7. Libraries & Frameworks for Low Latency

LMAX Disruptor – Lock-free inter-thread messaging.
Chronicle Queue/Wire – Off-heap, zero-GC persisted messaging.
Aeron – Low-latency UDP messaging.
Agrona – Utilities for concurrency, collections, buffers.

8. Keep it Simple

Code predictability beats cleverness — branch prediction matters.
Avoid exceptions for flow control.
Minimize false sharing by using @Contended (Java 8+).

Example: Fast Pub/Sub using Disruptor

RingBuffer<MyEvent> ringBuffer = RingBuffer.createSingleProducer(MyEvent::new, 1024);

EventHandler<MyEvent> handler = (event, sequence, endOfBatch) -> {
// process event
};

Disruptor<MyEvent> disruptor = new Disruptor<>(MyEvent::new, 1024, Executors.defaultThreadFactory(), ProducerType.SINGLE, new BusySpinWaitStrategy());

disruptor.handleEventsWith(handler);

disruptor.start();

Sample Ultra-Low Latency Trading Engine Loop in Java

Here’s a simplified event-driven trading engine loop using LMAX Disruptor — great for inter-thread messaging with ultra-low latency:

import com.lmax.disruptor.*;
import com.lmax.disruptor.dsl.Disruptor;

import java.util.concurrent.Executors;

// Market data or order event
class MarketEvent {
    double price;
    int quantity;
    long timestamp;
}

class MarketEventFactory implements EventFactory<MarketEvent> {
    public MarketEvent newInstance() {
        return new MarketEvent();
    }
}

// Handler (core of trading logic)
class TradingEventHandler implements EventHandler<MarketEvent> {
    @Override
    public void onEvent(MarketEvent event, long sequence, boolean endOfBatch) {
        // Minimalistic ultra-fast processing
        if (event.price < 100.5) {
            // Example logic: send buy order
            System.out.printf("Buy signal at %.2f qty %d%n", event.price, event.quantity);
        }
    }
}

public class UltraLowLatencyEngine {
    public static void main(String[] args) throws Exception {
        int ringBufferSize = 1024;

        Disruptor<MarketEvent> disruptor = new Disruptor<>(
                new MarketEventFactory(),
                ringBufferSize,
                Executors.defaultThreadFactory(),
                ProducerType.SINGLE,
                new BusySpinWaitStrategy()  // low-latency spin wait
        );

        disruptor.handleEventsWith(new TradingEventHandler());
        disruptor.start();

        RingBuffer<MarketEvent> ringBuffer = disruptor.getRingBuffer();

        // Simulated incoming market feed
        while (true) {
            long seq = ringBuffer.next();
            try {
                MarketEvent evt = ringBuffer.get(seq);
                evt.price = 100 + Math.random();
                evt.quantity = (int)(Math.random() * 10);
                evt.timestamp = System.nanoTime();
            } finally {
                ringBuffer.publish(seq);
            }

            // Remove sleep in real trading, added here to simulate pacing
            Thread.sleep(1);  // For demo only
        }
    }
}

Latency Profiling & Analysis Tools for Java on Linux

Here's a quick list of tools used by low-latency trading firms and performance engineers:

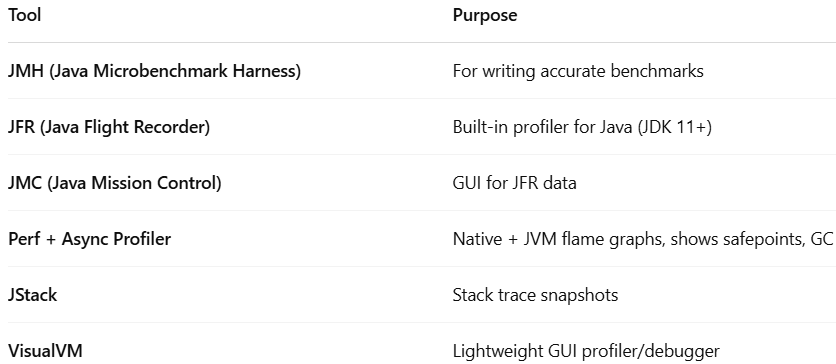

Java-Specific Tools

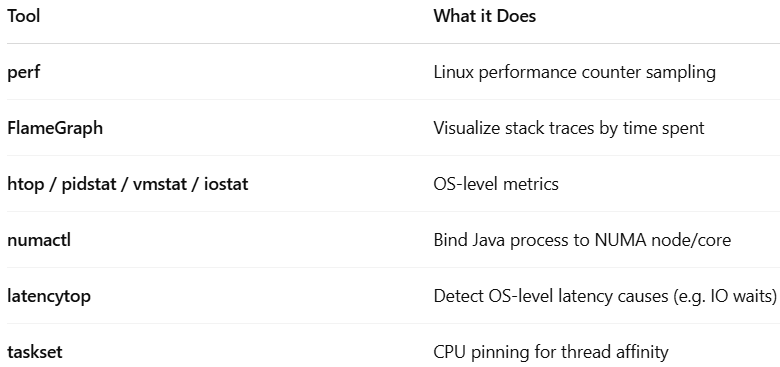

Native/Linux Profiling Tools

Example: Ultra-Low Latency Java Engine with Order Book + FIX Parser

Project Setup (Maven)

<dependencies>
    <dependency>
        <groupId>com.lmax</groupId>
        <artifactId>disruptor</artifactId>
        <version>3.4.4</version>
    </dependency>
</dependencies>

1. Market Order Event

public class OrderEvent {
    String orderId;
    char side; // 'B' = Buy, 'S' = Sell
    double price;
    int quantity;
    long timestamp;
}

2. Lightweight FIX Parser (Simulated)

Real FIX would use tag-value format (e.g., 35=D|55=MSFT|54=1|38=100|44=101.5). We'll simplify:

public class FixParser {

    public static OrderEvent parse(String fixMessage) {
        // Example: "ID=O123|SIDE=B|QTY=100|PRICE=101.5"
        OrderEvent event = new OrderEvent();
        String[] tokens = fixMessage.split("\\|");
        for (String token : tokens) {
            String[] pair = token.split("=");
            switch (pair[0]) {
                case "ID": event.orderId = pair[1]; break;
                case "SIDE": event.side = pair[1].charAt(0); break;
                case "QTY": event.quantity = Integer.parseInt(pair[1]); break;
                case "PRICE": event.price = Double.parseDouble(pair[1]); break;
            }
        }
        event.timestamp = System.nanoTime();
        return event;
    }
}

3. In-Memory Order Book

import java.util.*;

public class OrderBook {
    private final TreeMap<Double, Integer> bids = new TreeMap<>(Collections.reverseOrder());
    private final TreeMap<Double, Integer> asks = new TreeMap<>();

    public void addOrder(OrderEvent order) {
        TreeMap<Double, Integer> book = order.side == 'B' ? bids : asks;
        book.merge(order.price, order.quantity, Integer::sum);
    }

    public void printTopLevels() {
        System.out.println("Top of Book:");
        System.out.println("Best Bid: " + (bids.isEmpty() ? "-" : bids.firstEntry()));
        System.out.println("Best Ask: " + (asks.isEmpty() ? "-" : asks.firstEntry()));
    }
}

4. Disruptor Event Handling

import com.lmax.disruptor.*;

class OrderEventFactory implements EventFactory<OrderEvent> {
    public OrderEvent newInstance() {
        return new OrderEvent();
    }
}

class OrderHandler implements EventHandler<OrderEvent> {
    private final OrderBook book;

    public OrderHandler(OrderBook book) {
        this.book = book;
    }

    public void onEvent(OrderEvent event, long seq, boolean endOfBatch) {
        book.addOrder(event);
        if (seq % 10 == 0) { // Print every 10 orders
            book.printTopLevels();
        }
    }
}

5. Engine Startup

import com.lmax.disruptor.dsl.Disruptor;

import java.util.concurrent.Executors;

public class TradingEngine {
    public static void main(String[] args) {
        int bufferSize = 1024;
        OrderBook orderBook = new OrderBook();

        Disruptor<OrderEvent> disruptor = new Disruptor<>(
                new OrderEventFactory(),
                bufferSize,
                Executors.defaultThreadFactory(),
                ProducerType.SINGLE,
                new BusySpinWaitStrategy()
        );

        disruptor.handleEventsWith(new OrderHandler(orderBook));
        disruptor.start();

        RingBuffer<OrderEvent> ringBuffer = disruptor.getRingBuffer();

        // Simulate incoming FIX messages
        String[] fixMsgs = {
                "ID=O1|SIDE=B|QTY=100|PRICE=101.5",
                "ID=O2|SIDE=S|QTY=150|PRICE=101.8",
                "ID=O3|SIDE=B|QTY=200|PRICE=101.6",
                "ID=O4|SIDE=S|QTY=180|PRICE=101.4"
        };

        for (String msg : fixMsgs) {
            OrderEvent parsed = FixParser.parse(msg);
            long seq = ringBuffer.next();
            try {
                OrderEvent event = ringBuffer.get(seq);
                event.orderId = parsed.orderId;
                event.side = parsed.side;
                event.price = parsed.price;
                event.quantity = parsed.quantity;
                event.timestamp = parsed.timestamp;
            } finally {
                ringBuffer.publish(seq);
            }
        }

        // keep alive to observe output
        try { Thread.sleep(5000); } catch (InterruptedException ignored) {}
    }
}

Output Example

Top of Book:
Best Bid: 101.6=200
Best Ask: 101.4=180

Optional Enhancements

Matching Engine Logic — match orders before adding to book.
FIX Engine — integrate with QuickFIX/J for full FIX support.
Persistence — integrate Chronicle Queue to log events.
JMH Benchmarks — profile addOrder() or parse() methods.
